FDS is a full compact training system to improve operations of tactical drones.
We have KAMIKAZE DRONES and DROPPING PLATFORMS on board.

Follow progress

Annalise progress skills of operators:

Collect training data in PERSONAL ACCOUNTS.
Check progress by SKILLS ANALIZE TOOLS.

Improve your drones

Use also our system to:

Implementation autonomous decisions.
Train and valid AI algorithms.

Additional devices

3D data

We perapare REAL 3D WORLD MAP and ADDITIONAL CONTENT.

Customization

WE CAN MODIFY SCENARIOS ACCORDING TO CURRENT REQUIREMENTS.
There is a possibility of a QUICK ONLINE UPDATE for all training units.
We are able to prepare special 3D objects for bulid special trainings.

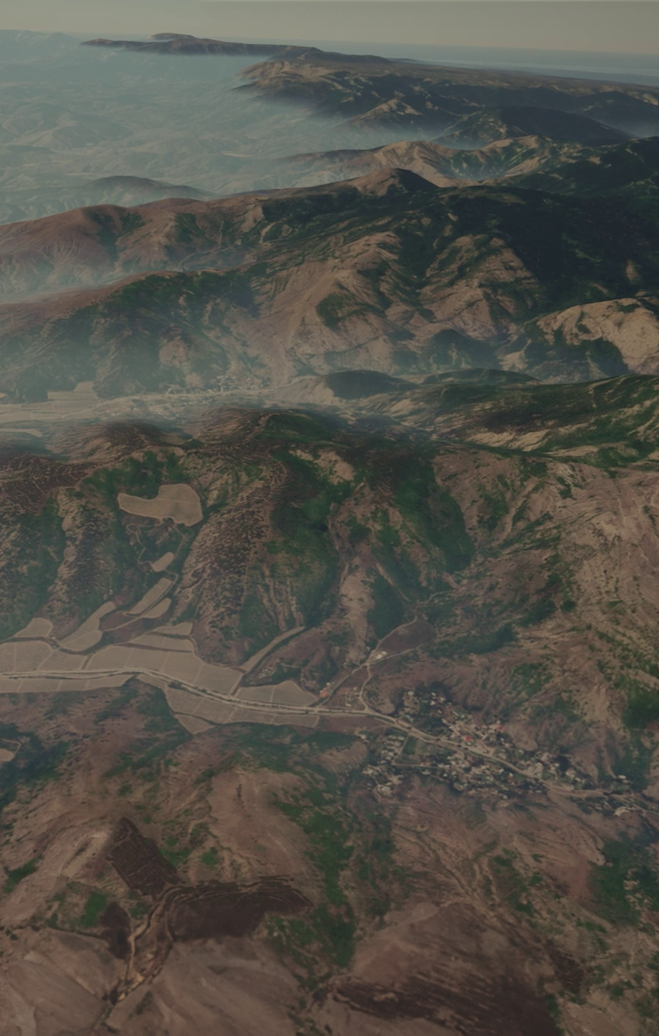

Real 3D word data - Mezhdurech'ye (Crimea - Ukraine)

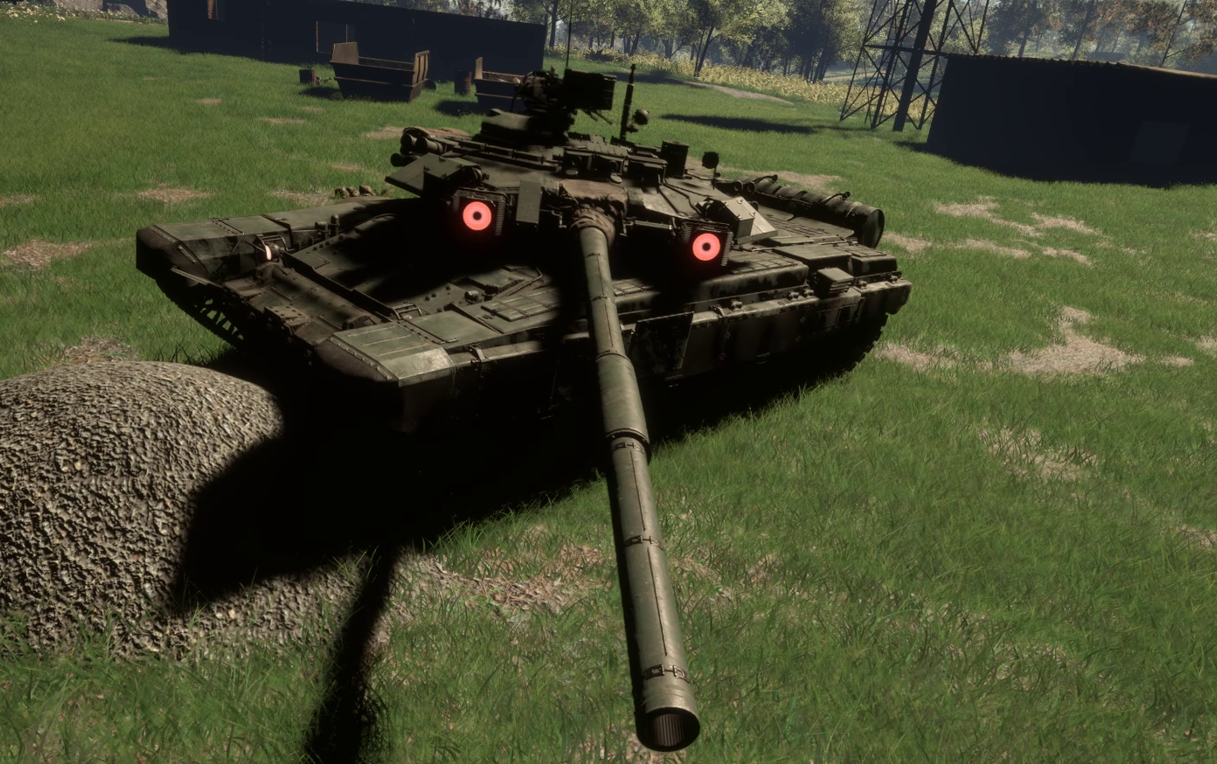

Example target - T90 tank

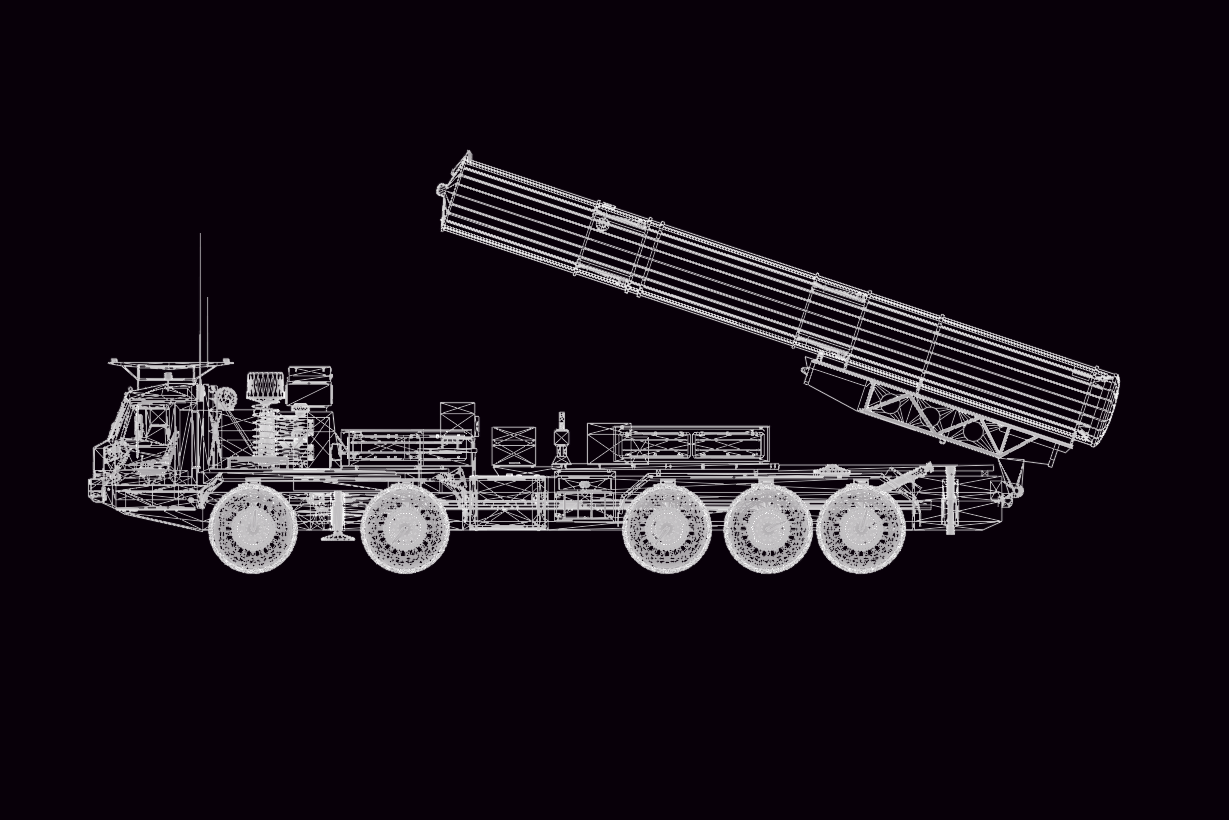

Preparing object mesh - S500 launcher

AI assistant

You can TRAIN AND VALIDATE neural networks with synthetic data (artificial imaging) from FDS .

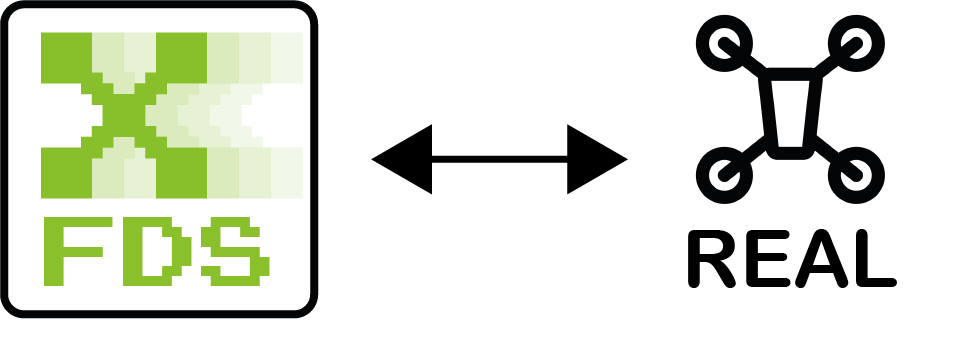

YOU CAN QUICK EXPORT IT TO YOU REAL DONES.
You can improve AI algorithms with FDS.

Example 1

TARGET ASSISTANT

It is the artificial intelligence algorithm to recognize targets (T90 and S500) on a drone board system.
I can be used to support operators (manual flight) WHEN THE VIDEO SIGNAL IS WEAK.
Another way can be to implement a FULL AUTONOMOUS ATTACK ALGORITHM.

[MOVE] AI assistant test

[MOVE] Surprise attack

Example 2

DROP HELPER

Artificial intelligence tracking objects can be used to calculate PRECISION DROP OF GRENADE.
We can implement and test it in FDS. Next solution will work with a real UAV.

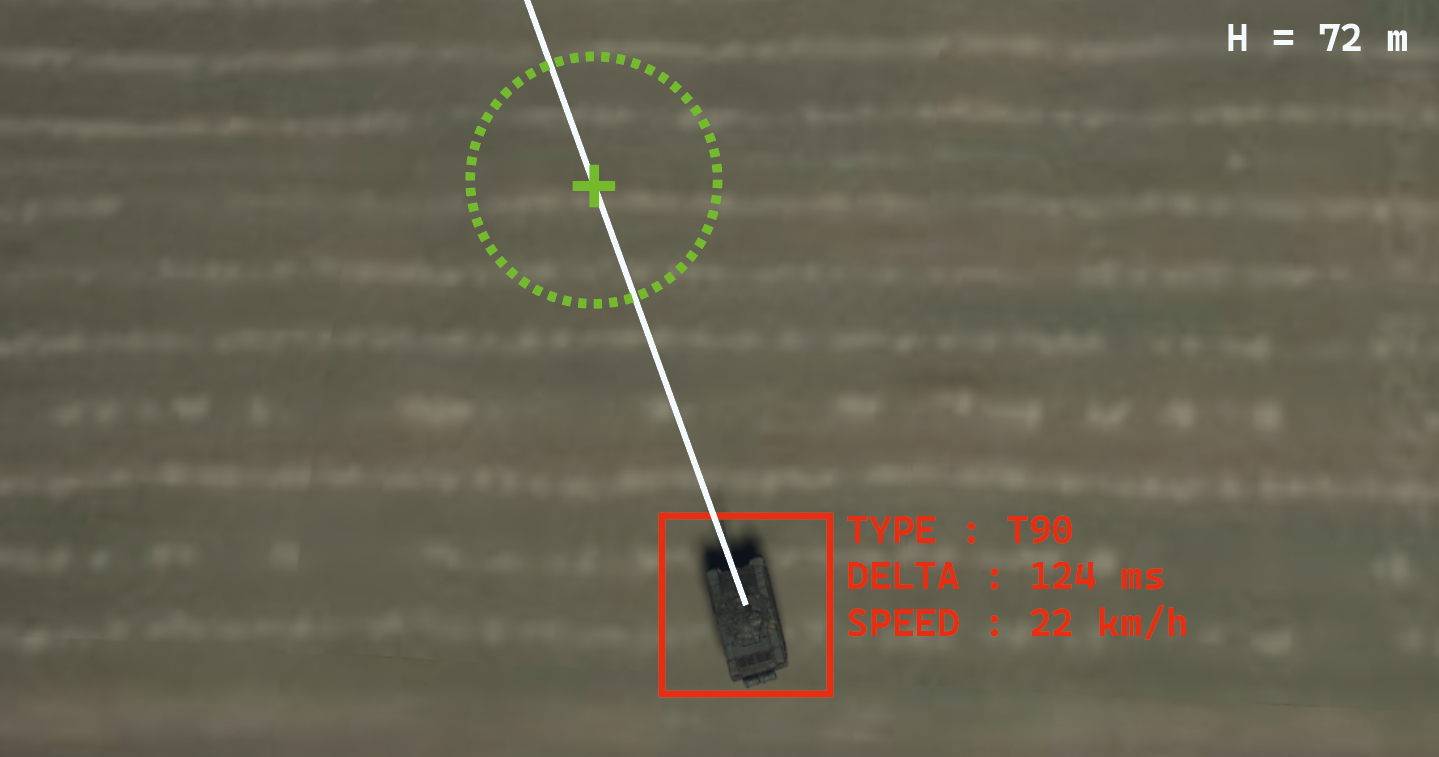

Tracking T90 with calculation view of dropping

Example 3

BULLET TRACKING

System can be used to train/test other visual objects recognition.
Below is shown tracking of bullets stream from C-RAM system on navi.
This way can be implemented to swarm drones to avoid bullets.

[MOVE] Bullets tracking

using FDS you automatically belong to

AI ASSISTANT PROGRAM

UAV simulation

Our simulator is ready to FULL SIMULATION of your platform.

SIL / HIL

SIL (Software In the Loop) or HIL (Hardware In the Loop) technics
are able to simulate the some software what is working your
drones in FDS simulator.

You can modify your software and test without risk in FDS.
Next upload it to your real drones.

FDM

FDM (Flight Dynamic Model) build in FDS is able to
implement realistic physics of your aerial platform;
MR (MultiRotor), A (Aircraft), H (Helicopter).

RF devices

We add our special device to simulate RF devices.
You can use REAL CONTROLLER AND FPV GOGGLES.
Train with FDS using your REAL CONTROL SET.

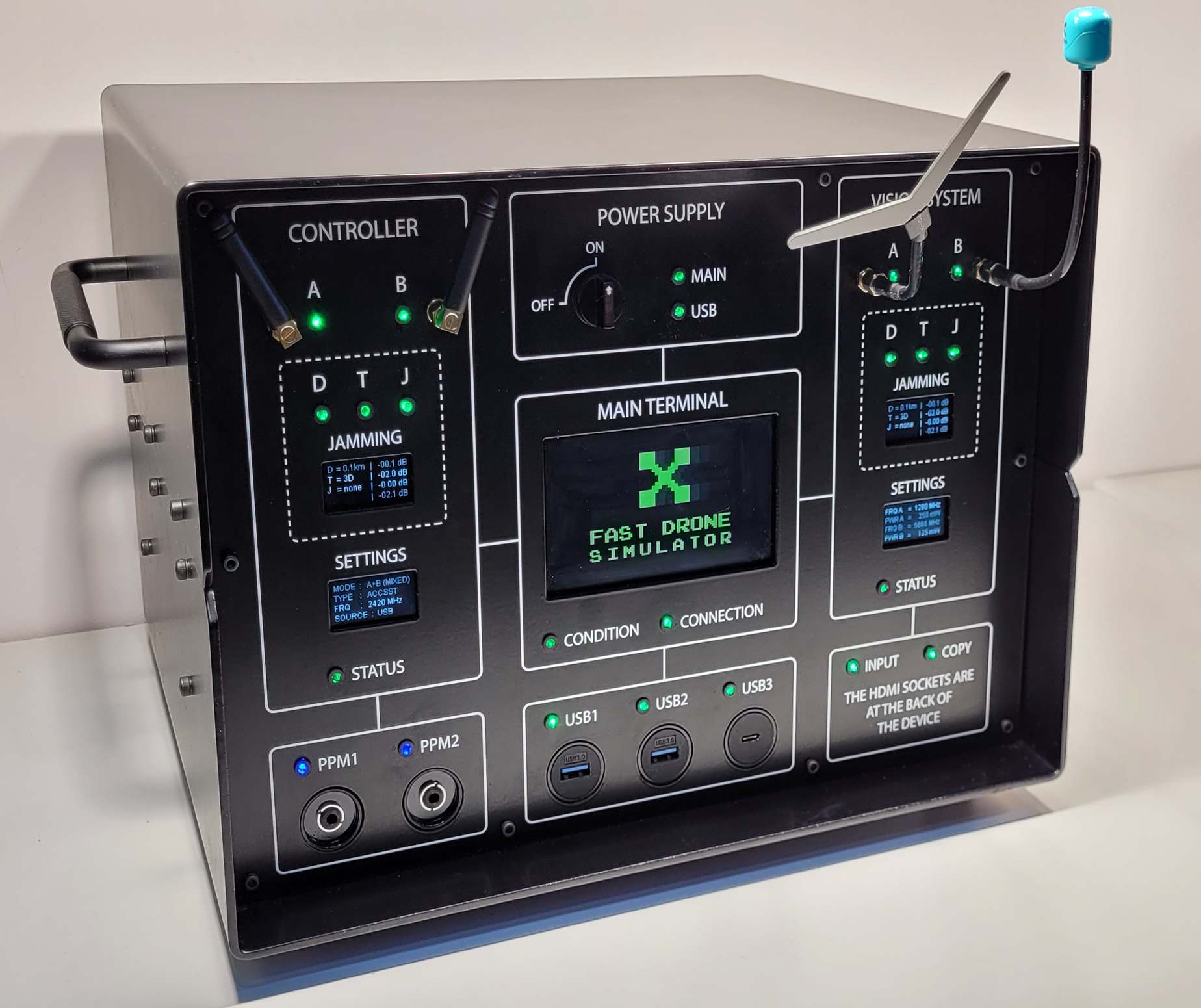

Box with RF devices

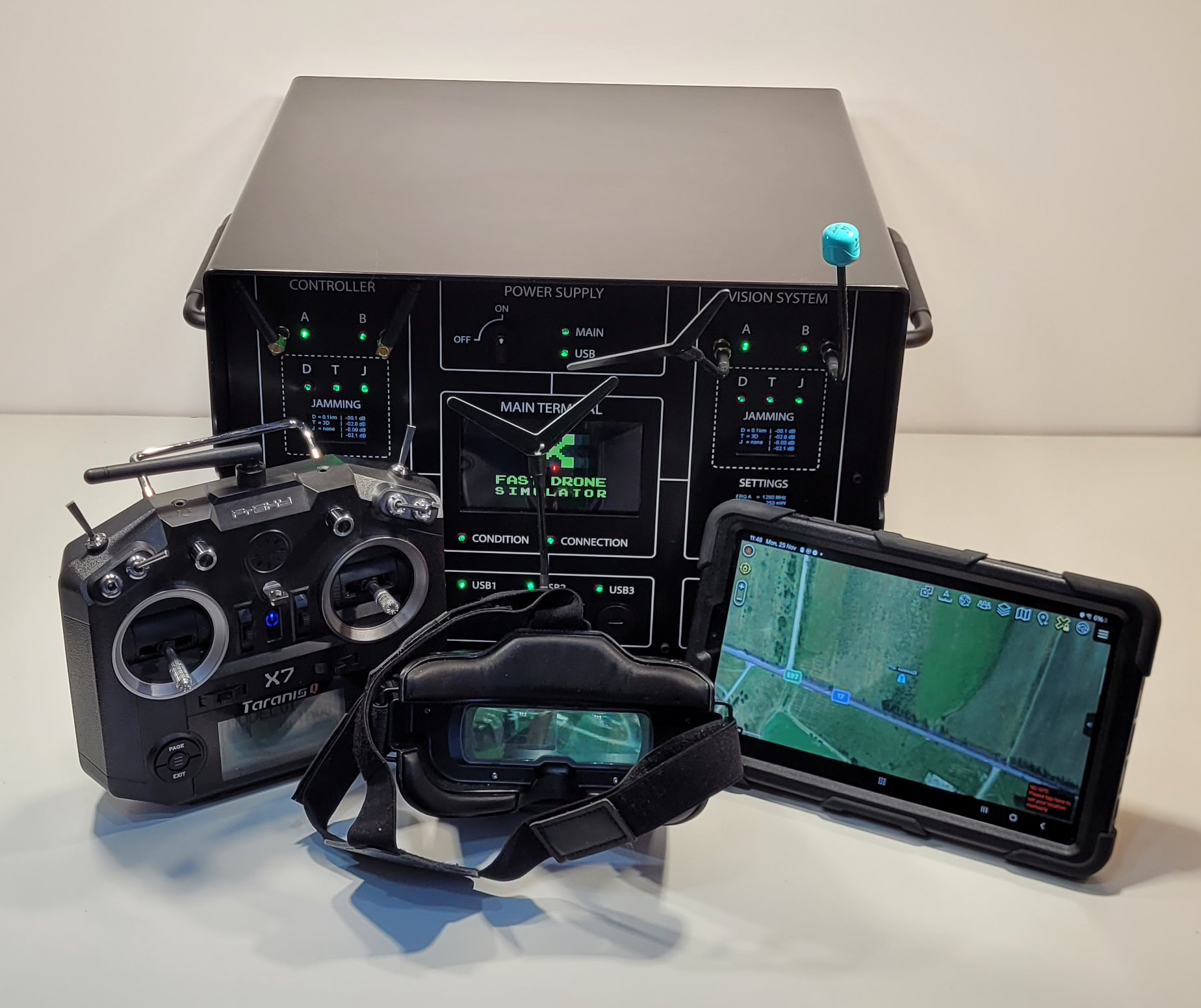

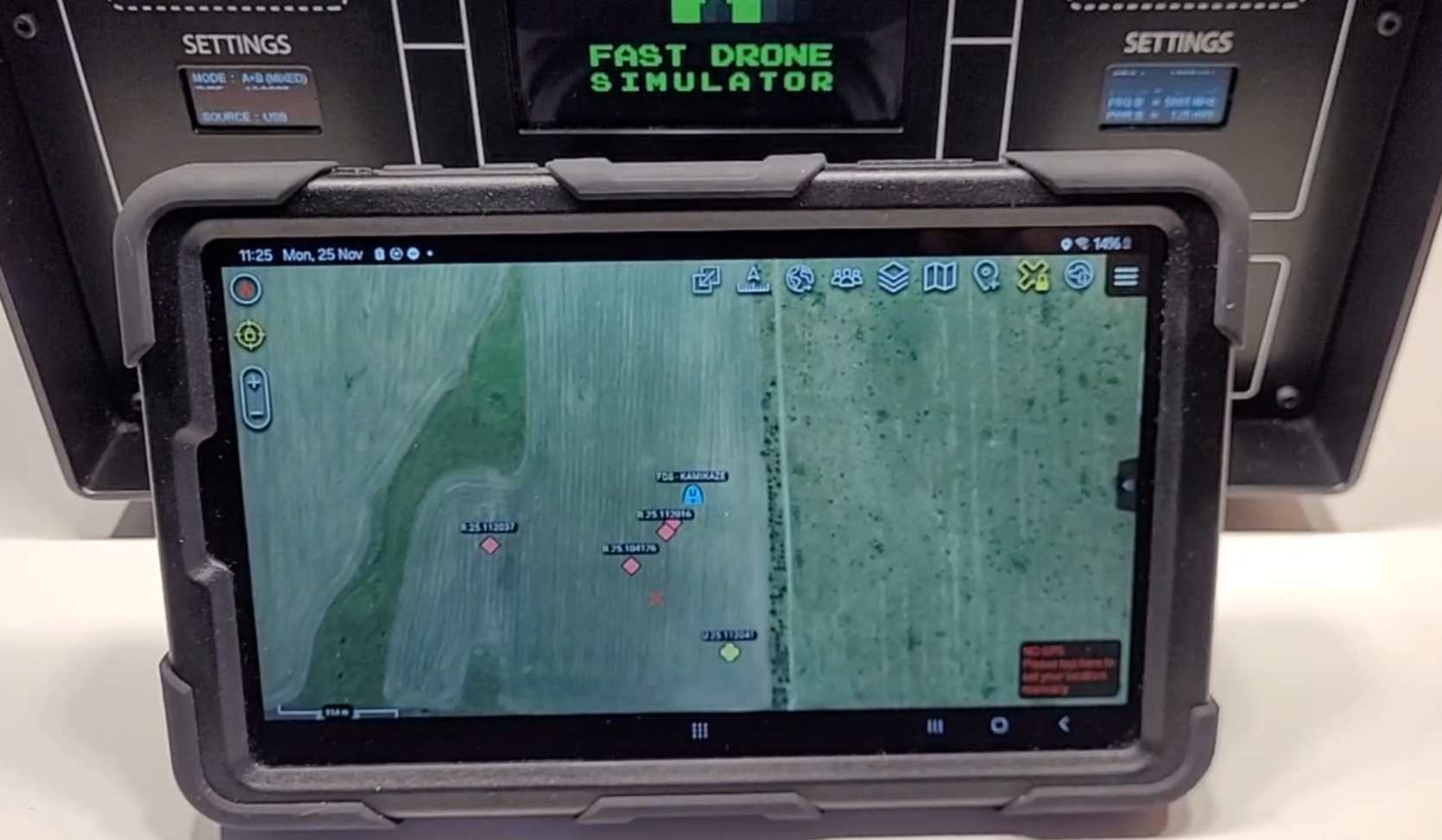

Box, Controller, FPV goggles, Tablet

FM VIDEO STREAMER

Integrated FM streamer lets you see images from simulation on real FPV goggles.
Also the system can simulate distorsions like a WAKE SIGNAL AND JAMMING EFFECTS.
